Setting up an Ingenico Lane 3000 Chip Reader (US Only)

Dave Carr
Dave Carr
  • Updated

Chip readers (also known as PIN Pads, Chip & PIN machines, card machines or PDQs) can be used to take in-person card payments. You can take in-person card chip and tap to pay payments using the Ingenico Lane 3000.

TIP: The Ingenico Lane 3000 is only available for US Clients who use Worldpay as their Payment Gateway.

If you use a different payment solution for in-person card payments, refer to the following articles:

Spektrix integrates with the Ingenico Lane 3000 chip reader. Chip readers / PIN Pads require setting-up and configuring before they can be used. This article guides you through an installation step by step.

WARNING: You can still use the Ingenico Lane 3000 chip reader, however it is no longer available to purchase. It will cease to be PCI compliant on the April 30 2026. After this time you must stop using the Ingenico Lane 3000. You can either purchase an Ingenico Lane 3600 or move to Spektrix Payments to remain PCI compliant.



Getting Started

Before you can set up the Ingenico Lane 3000, you'll need:

WARNING: Mistakes during installation can be time-consuming to rectify. Even if you’ve installed a chip reader before, please follow this article closely, observing any changes to the process since your last installation.

If you have not yet installed the Box Office App on your computer, please read our article Installing the Spektrix Box Office App.

When you're ready to install your Chip Reader, follow these steps:

    1. Update the Box Office App
    2. Change System Configurations
    3. Install the USB Device Driver
    4. Unbox the Chip Reader and connect your device
    5. Set up the triPOS software
    6. Modify the triPOS software
    7. Install multiple Chip Readers
    8. Register the Chip Reader with the Box Office App
    9. Connect device to your Spektrix System
    10. Test a payment



Updating the Box Office App

Make sure you have the latest version of our Box Office App by following these steps:

  1. Right click the Box Office App icon in the system tray

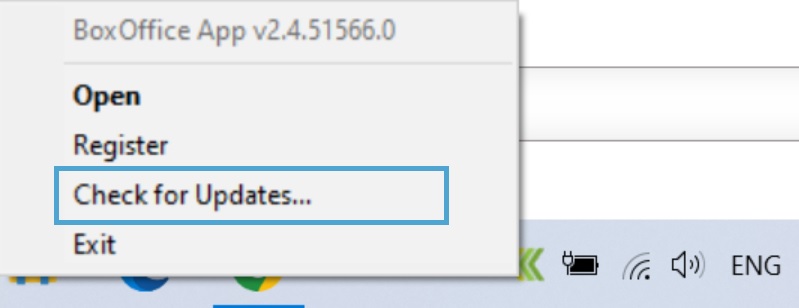

  2. Click Check for Updates:




Changing System Configurations

Before you continue the installation process, contact our Support Team. Our team will need to change some settings in your system.


Let us know when you have installed and updated the Box Office App, and before you connect your Chip Reader. Our team will then set up the following features in Spektrix for you:

  • Chip refunds
  • Your Chip Reader Payment Gateway
  • Chip Reader receipts

Once our team has confirmed that these System Configurations are complete, you can continue with the installation. There is no further need to contact Support to complete the installation.

Next, install the USB Drivers for your Ingenico Lane 3000.


Installing the USB Device Driver

Once our Support team has confirmed your system configurations are correct, download the USB Device Driver.

To download the USB Device Driver, follow these steps:

  1. Download the USB Device Driver from the Ingenico Lane 3000 section of our Software and Driver Downloads article.



  2. The ZIP file will download to your computer (usually your downloads folder).



  3. Open and run the file IngenicoUSBDrivers_3.36_setup_SIGNED.exe.

Once the USB Device Driver is installed. Next, you'll unbox your chip reader and connect the device.



Unboxing the Chip Reader

To connect your Ingenico Lane 3000, follow these steps:

  1. Take the chip reader and cables out of the box
  2. Find the long cable ending in a USB connector
  3. Connect the opposite end of this USB cable into the back of the chip reader
  4. Insert the USB cable into a USB port on your computer
  5. On the USB cable, you will see another short connector. Attach this to the power lead.
  6. Connect the device to a power source

Note: You may need a small Phillips head (crosshead) screwdriver in order to connect the cable on some devices.

You can watch the steps above in the following video:

TIP: You do not need the ethernet cable supplied with the device for this installation

After you've connected your device, you'll locate the chip reader in the Device Manager.



Locating the Chip Reader in Device Manager

To locate the chip reader in Device Manager, follow these steps:

  1. Open Device Manager by clicking the Windows/Start button in your taskbar, typing Device, then clicking Device Manager.

    TIP: You may see a message pop up asking ‘Do you want to allow this app to make changes to your device'. If this happens, click Yes.

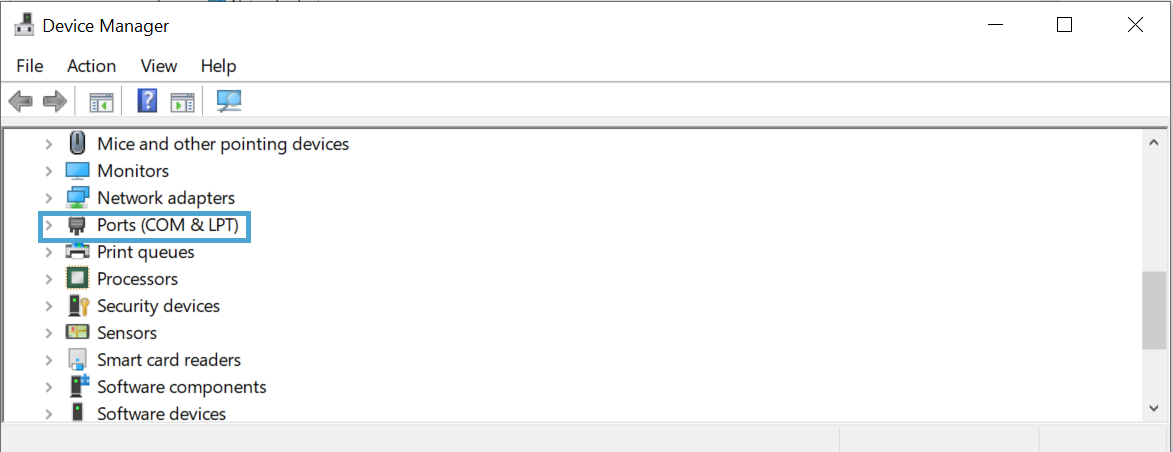

  2. In Device Manager, scroll down and click the ‘>’ symbol to expand Ports:



    You will now see all ports in use on your computer. This should include your chip reader. It may be labelled as either USB Serial Device or Ingenico Lane 3xxx.

    TIP: The default Windows driver is the USB Serial Port driver. It usually connects to COM9 but this number varies depending on how many hardware devices have previously connected to a particular PC. In the following examples, the device uses COM3.

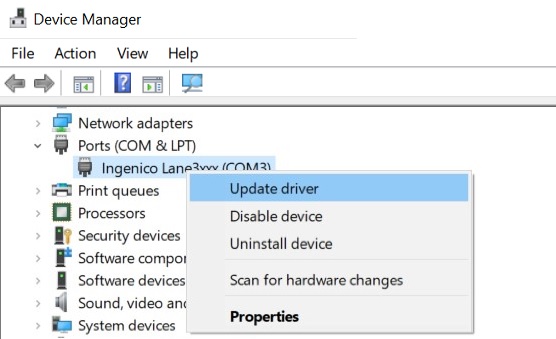

  3. Right-click your Chip Reader in the list and select Update Driver:

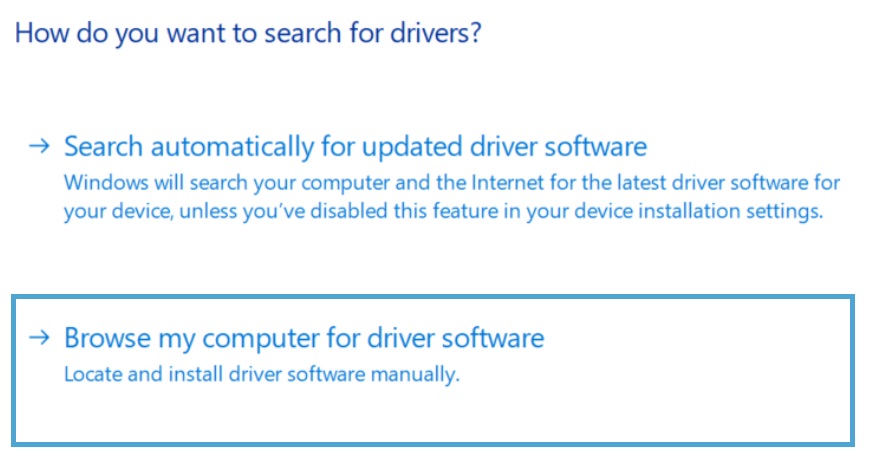

  4. Next, click Browse my computer for driver software:

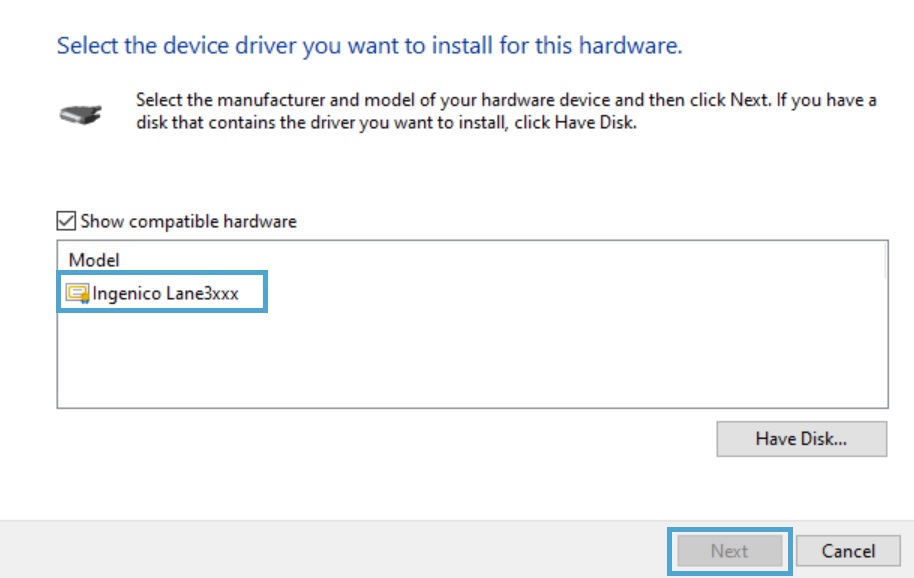

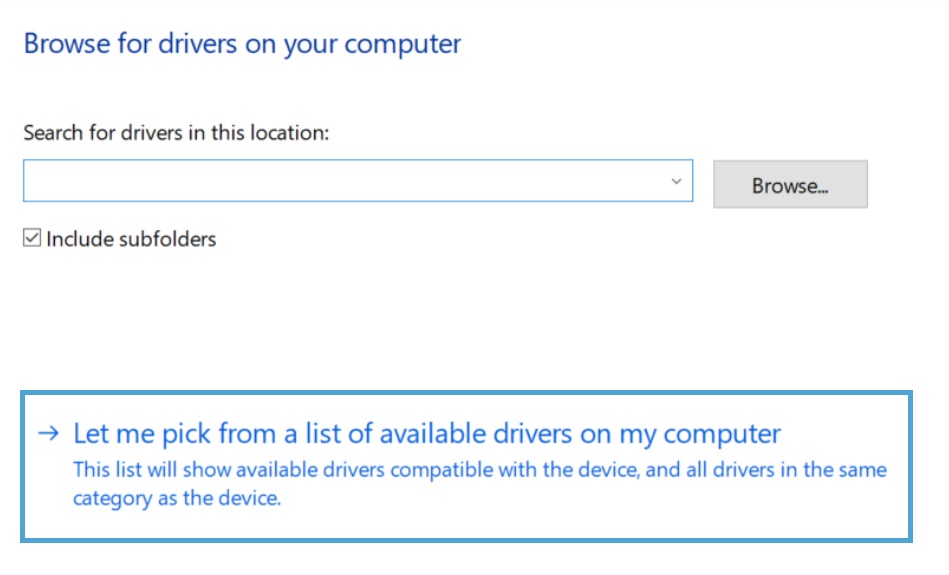

  5. From the next window, click Let me pick from a list of available drivers on my computer:





  6. You will now see the name of the specified driver for your Chip Reader. Highlight the device you have just installed and click Next:

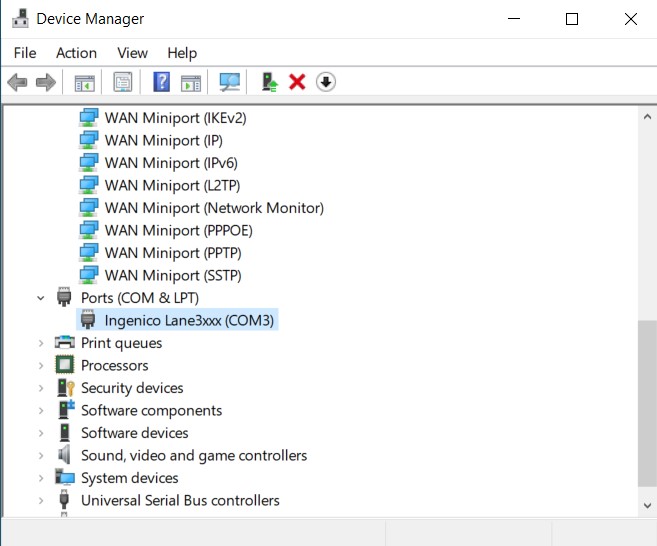

  7. The chip reader will now be listed in Device Manager > Ports:



    REMINDER: Once you've updated the device driver, make a note of the COM number. This is shown here as COM3 but your COM number may vary. You will need this number when installing the TriPOS software later.



Setting up the triPOS software

Once you have installed the driver and connected your chip reader, you'll need to configure the device to work with Worldpay. You'll need to complete the following:



Installing the triPOS software

  • This section explains how to download and install the latest triPOS Software.

    1. Download the triPOS Software from our Software and Driver Downloads article. The file you need will have triPOS_Setup.exe in the name.

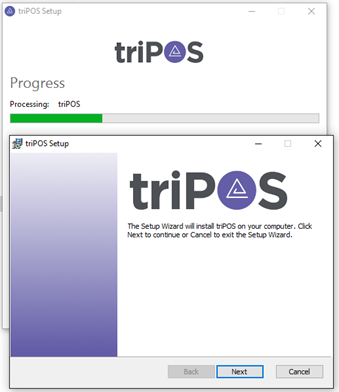

    2. Double click the file to start the installation process. You’ll see a triPOS Setup window appear.

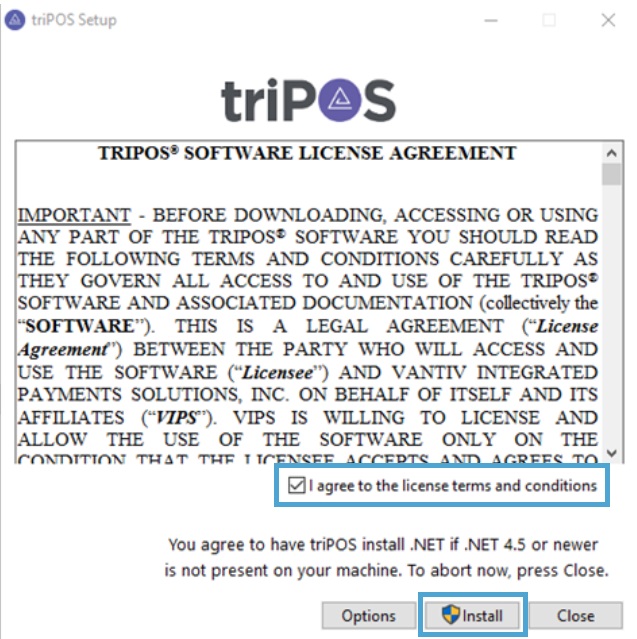

    3. Tick the checkbox ‘I agree to the license terms and conditions’.Tripos_tick_to_agree.jpg
    4. Click Install.

    The installation process will now begin. After installation, do not close the triPOS windows. Instead, continue immediately to the next section on how to enter the Configuration information.



Configuring the triPOS software

Click the box below for instructions on configuring the triPOS software.

  • This section explains how to enter the Configuration information for your Ingenico Lane 3000.

    1. Once you've installed the triPOS software, click Next to continue the setup process:



      Beginning configuring the triPOS software.

    2. Move through each section, clicking Next until you reach the Configuration Information window:



      Adding Configuration Information to the triPOS software.

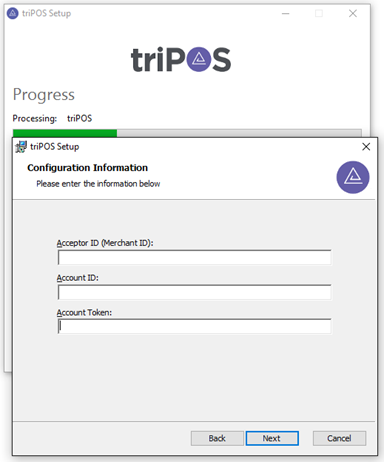

    3. In the Configuration Information window, complete each of these fields:
      • Acceptor ID (Merchant ID)
      • Account ID
      • Account Token

      You can find these details in your Worldpay Account. Go to Worldpay > Self Service > Express Credentials.

      Once you have completed all three fields, click Next.

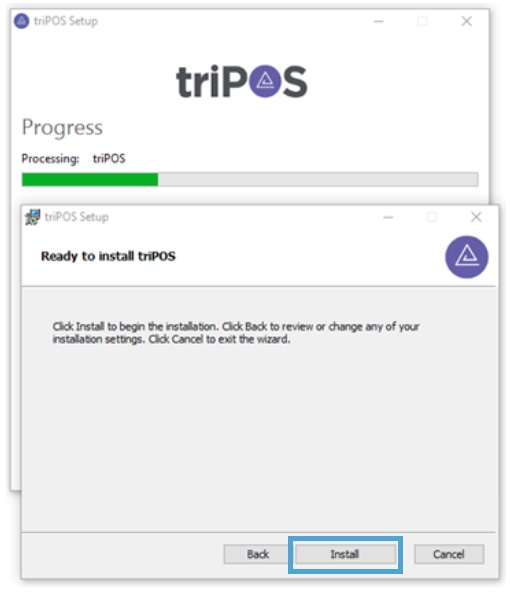

    4. Click Install to continue the installation process:



      Clicking install.

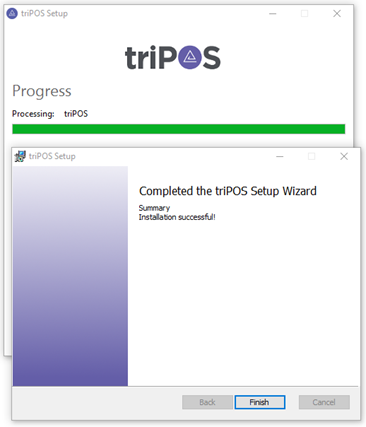

    5. In a few moments, you should see the following message indicating that the installation has completed. Click Finish:



      Installation completed.





Modifying the triPOS service

After installing and configuring the triPOS software, you'll need to modify the triPOS.config file. This file contains settings for your chip reader.

TIP: To view and edit the triPOS.config file, you’ll need a text editor/source code editor.

If you don’t already have an editor, we recommend downloading Notepad++ before continuing.

Click the box below for instructions on how to modify the triPOS.config file.

  • Read this section for help modifying the triPOS.config file. This file contains the settings for your Chip Reader so it’s important that you update it correctly.

    You'll find the triPos service and config file in one of the following folders:

    • C:\Program Files (x86)\Vantiv\triPOS Service” (64 bit PCs)
    • C:\Program Files\Vantiv\triPOS Service” (32 bit PCs)

    TIP: You can check whether your computer is 32 or 64 bit here

    To modify the triPOS.config file, first, open the triPOS.config file using Notepad++. To do this, locate the file, right-click on it, select ‘open with’ and then choose Notepad++ from the dropdown list.

    The file will contain a list of specific configurations for your chip reader. You will often see the terms 'true' (yes) and 'false' (no) - these send basic instructions to the device; for example, if 'testMode' is set to 'true' (yes), this places the device in test mode. Changing this to 'false' (no) removes the device from test mode.



    For each field, only amend text between the > and < symbols. For example:

    • <Do Not Edit>edit here</Do Not Edit>

    WARNING: Only change the fields listed below; changing any other fields may cause your chip reader to malfunction.

    <testMode>true</testMode> replace true with false
    <pinPadIdleMessage>Welcome to YourCompany</pinPadIdleMessage> replace YourCompany with your company name
    <allowPartialApprovals>true</allowPartialApprovals> replace true with false
    <isDebitSupported>true</isDebitSupported> replace true with false
    <isGiftSupported>true</isGiftSupported> replace true with false
    <isEmvSupported>false</isEmvSupported> replace false with true
    <driver>Null</driver> replace Null with IngenicoUpp (see tip below)

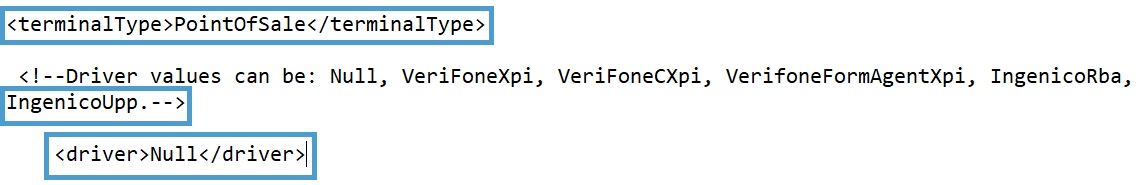

    TIP: You may see <driver> in several places within the file. You should only change the one under terminalType, with IngenicoUpp listed above it, as follows:



    <comPort>COM9999</comPort> replace COM9999 with the COM Port you noted earlier in the installation process. You can find this again in Device Manager under Ports (COM and LPT).
    <message>Welcome!</message> This will appear on your chip reader between transactions. You can change this to anything you like, or keep it as ‘Welcome!’
    <transactionAmountLimit>10</transactionAmountLimit> replace 10 with 100000.

    WARNING: Before you save the file, there are two more fields you must check to make sure they match your Worldpay settings. These must match for payments to go through. They are shown below:

    <terminalId>0000009999</terminalId> replace 0000009999 with your Terminal ID.
    The Terminal ID is connected to your payment service provider. Make sure this number matches the unique Terminal ID found in your Worldpay settings.
    <serialLane description="NULL PIN pad" laneId="9999"> Make sure that laneId is set to 9999. This number must match the number in the Spektrix Box Office App.

    TIP: If your organization uses more than one chip reader, You will need to change the laneId number for any subsequent installations. See Installing multiple Chip Readers for more information.

    Once you’ve checked that all your triPOS.config file settings match the above examples, save the file.

    Your device will now update again. During the update, the screen on your device will appear to reset. The process usually takes two to three minutes.

    TIP: If the device doesn’t automatically update, hold down the yellow button and the ‘0’ key on the Chip Reader for 5-10 seconds to force a restart.

Once you have modified the triPOS.config file, continue to Registering your Chip Reader.

If your organization uses more than one Chip Reader, read Installing multiple Chip Readers.



Installing multiple Chip Readers

If your organization uses multiple chip readers, you'll need to make an additional change during installation. This is to ensure that payments made on different devices at the same time, do not conflict:

  1. In the Modifying the triPOS service section above, click on the dropdown titled ‘important instructions on modifying the triPOS software’, then find the section where laneId is ‘9999’.
  2. Give each device a unique 4 digit laneId. Choose something identifiable for each chip reader (e.g. 0001, 0002 etc).
  3. Keep a note of each 4 digit laneId number. You will need to enter it when you register each device with the Box Office App.
  4. It’s a good idea to physically label each chip reader with both its unique laneId and the Terminal name you give it in the Box Office App.



Adding an Ingenico Lane 3000 with the Box Office App

Next, you need to register the Ingenico Lane 3000 with the Box Office App. Follow these steps:

TIP: If you cannot see the Test Printer, Ok and Cancel buttons when you open the App, read My App has missing buttons in Troubleshooting the Spektrix Box Office App.

  • First, open the Box Office App from your system tray.
  • Next, select the Chip & Pin Terminal tab.




TIP: The image above is for guidance only. You should enter details as follows:

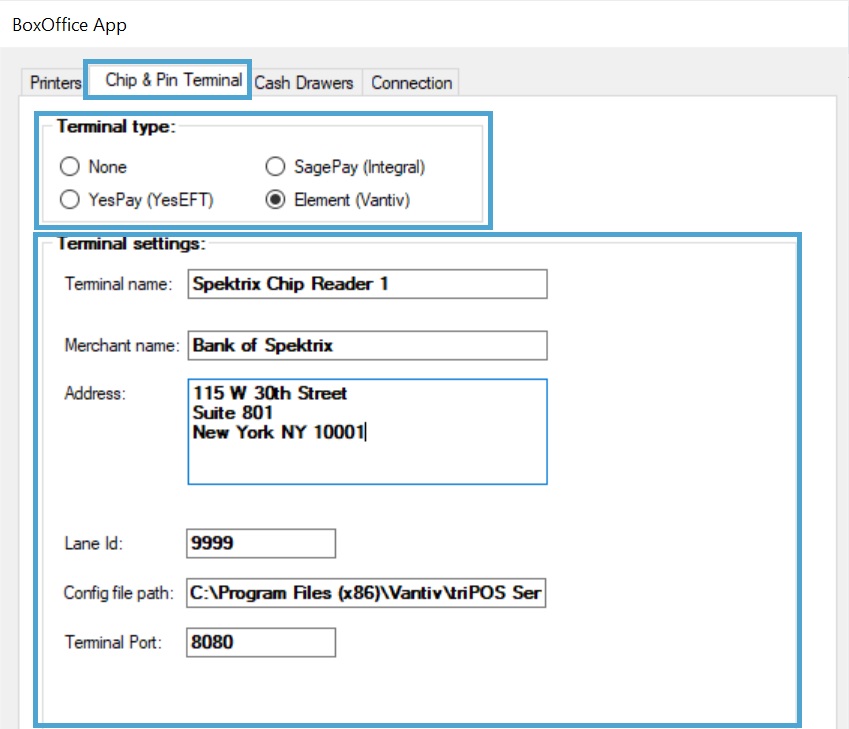

  • Under the Terminal type section, select Element (Vantiv).



  • Terminal name: Choose a unique name for this chip reader. You’ll see this when selecting it in Spektrix, so make it something easy to identify).



  • Merchant name: The name of your Merchant bank - this is the bank your organization uses (Examples: Chase, Wells Fargo, Bank of America, etc).



  • Address: Your organization’s address as associated with your Worldpay account - this will most likely be your organization’s physical address.



  • Lane ID: 9999 (or for multiple Ingenico Lane 3000 installations, the custom lane id for the device downloaded to each computer).



  • Config file path: The location on your computer where the triPOS config file is stored.



  • Terminal Port: 8080.



Click OK to save these changes.



TIP: If you cannot see the OK button in the App, read My App has missing buttons in Troubleshooting the Spektrix Box Office App.

Your chip reader is now registered with the Box Office App. Next, select the device in Spektrix.



Selecting Chip Readers in Spektrix

Once the chip reader has been registered to the Box Office App, log in to Spektrix. Then follow these steps:

  • Go to the Spektrix Control Panel and click Change Local Settings:

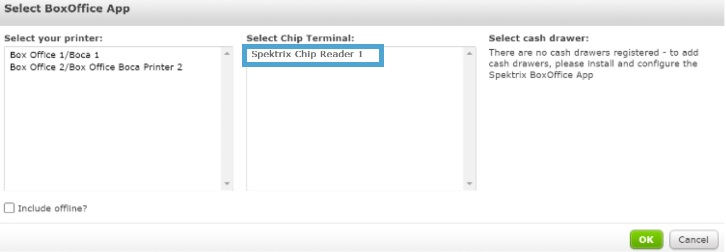

  • In the Select BoxOffice App window, select the chip reader you registered to the App from the Select Chip Terminal section:






  • Once you have selected the chip reader, click OK.



Your App is now fully installed and configured and ready to make a test transaction.



Testing a payment

TIP: We recommend testing a transaction on all new Chip Readers before processing payments for customers

Once you have completed all previous sections, go to the Spektrix control panel and navigate to the Spektrix Sales Interface. Take a test payment as follows:

  1. Add an item to the basket (you can override the price to be $0.01)
  2. Select the Chip payment method
  3. Insert or tap the payment card as instructed on the Chip Reader
  4. Confirm the payment as instructed on the Chip Reader

REMINDER: Once the test payment has completed, remember to refund the transaction

Your Chip Reader is now fully set up and ready to use.



Further Reading

You can now take payments with your Ingenico Lane 3000 in Spektrix. You may also find these articles helpful:
