An Instance represents a single occurrence of an Event. Instances hold information such as the Date, Start time, Seating Plan and Delivery Methods.

This article will guide you through how to set up one or multiple Instances within your Event.

Before reading this article, make sure you’re familiar with:

Before you set up Instances, you’ll need to make sure you have the following things ready.

WARNING: If you do not have these elements in advance, you will not be able to create Instances for your Event. The following checklist contains everything you need before setting up an Event. Bear in mind that you might have these set up on your system already. You don’t need to set these up new for every Event as it is possible to reuse them across multiple Events.

  • Before you set up Instances, you’ll need to make sure you have the following things ready.

    WARNING: Once you've created an Instance, you cannot change its Seating Plan but you can use Seating Plan Overlays to make changes.

    • Ticket Types
      Ticket Types allow you to define different sorts of tickets for your Event and will be used when creating a Price List which specifies their cost. There’s more about this in the article Creating and Editing Ticket Types.

    • Price List
      A Price List is used to specify the cost of each of your Ticket Types in each Price Band for a particular Event. If you need to create a new Price List, follow the steps in the article How to Create a Price List or to make changes, How to Edit a Price List.

    • Price Band Overlay
      Your Price Band Overlay will assign your Price Bands to individual Seats. If you need to create a new Price Band Overlay, follow the steps in How to Create a Price Band Overlay.

    • Lock Types
      Locks are used on both reserved and unreserved Seating Plans to hold groups of seats back from general sale. If it’s your first time creating Locks, start with Introduction to Locks before following the steps in How to Set Up Lock Types.

    • Lock Overlay
      You will need a Lock Overlay to apply your Lock Types to the Seating Plan you’ll be using for this Event. If you don’t already have one, follow the steps in How to Create Lock Overlays to set this up.

    • Layout Overlay
      With your Layout Overlay you can choose to mask some of the seats from your Seating Plan. If you don’t already have one, follow the steps in How to Create a Layout Overlay to set this up.

    • A Ticket Design

    Your Ticket Design will be used to print physical and print at home tickets. If you need to create a new Ticket Design, follow the steps in the Ticket Design Tool article. If you’re using print at home tickets, as well as a Ticket Design, you will also need to follow the steps in How to Set Up Print at Home Tickets / E-Tickets.

    • Ticket Commissions

    If you wish to apply a charge to individual tickets, and you’ve not already set this up before, follow the steps in the Ticket Commissions article.

    Optionally, you may also want to set up:

    • A Ticket Donation Structure
      Ticket Donations Structures provide the option to add Donations at the point of ticket purchase. If you want this Donation to contribute to a specific Fund then make sure this is also set up in advance. Ticket Donation Structures can be added to Events and Instances or changed at any time.

Creating an Instance

To create an Instance, go to Admin > Events, then Select the Event you would like to edit and go to the Instances tab.

To add a new Instance select Add. There are three tabs in which you need to add information to the Instance: Details, Ticket Donations and Seating Plan.

Instance Details

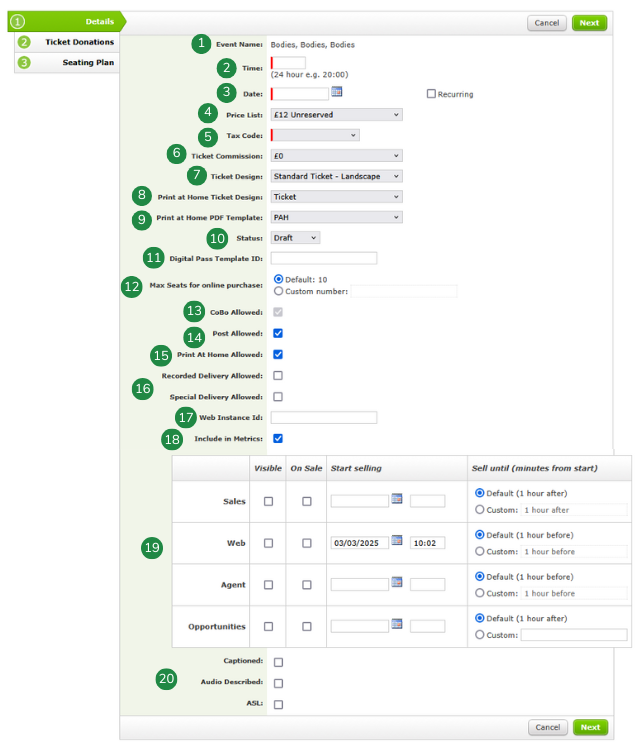

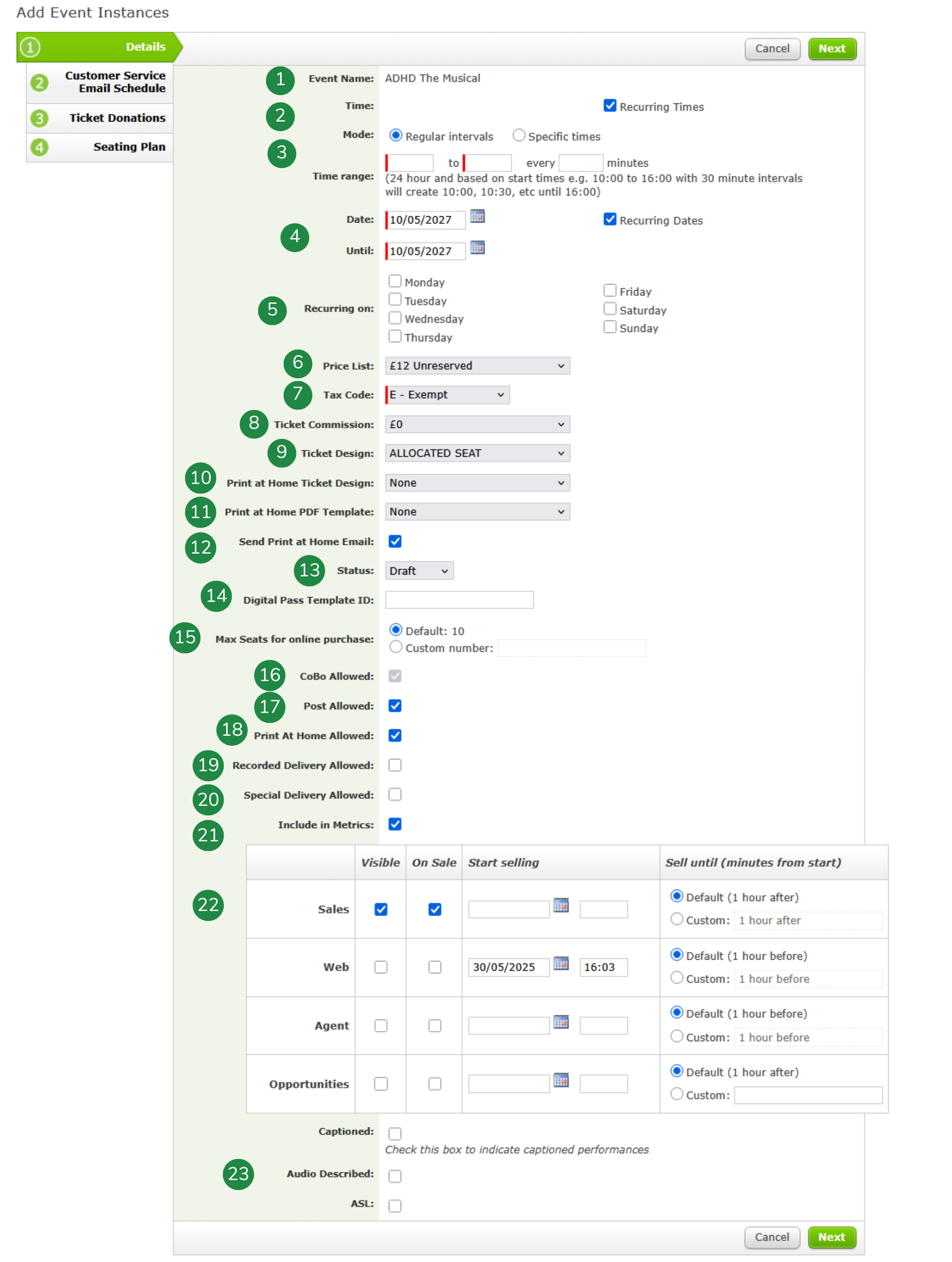

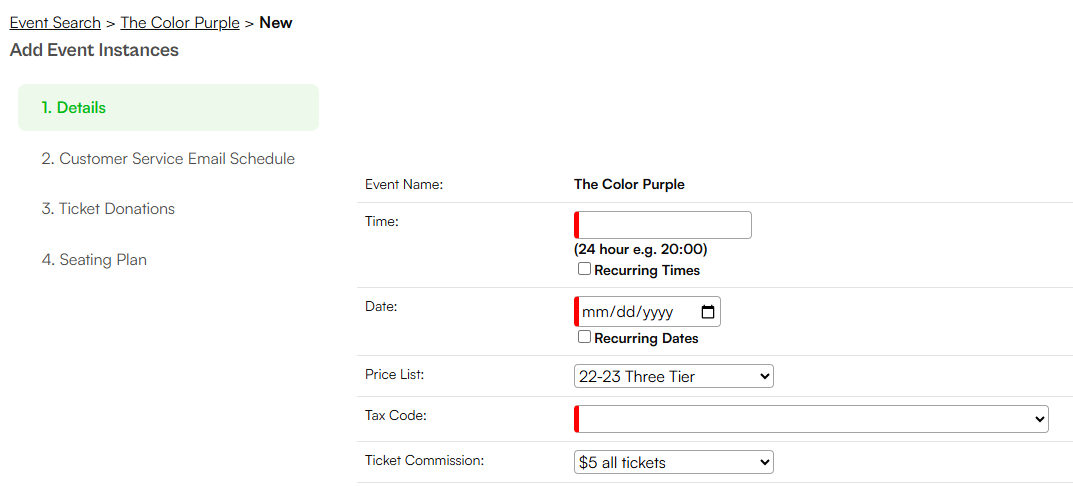

The first tab is the Event Instance Details tab. Here you fill in the details relevant to the specific Event Instance.


      1. Event Name: This will automatically be populated with the Event name under which you created the Instance.
      2. Time: The time the Instance starts.
      3. Date: The date on which the Instance takes place.

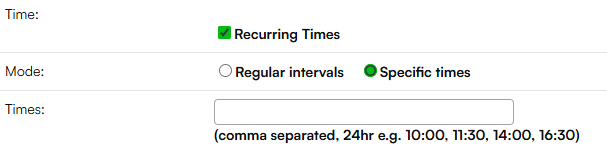

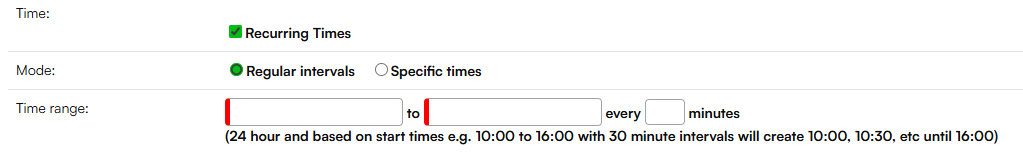

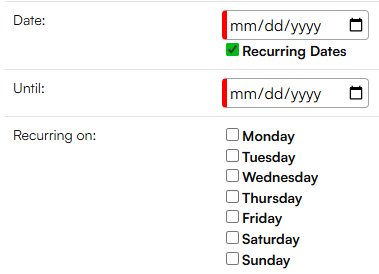

        TIP: You also have the option here to check the recurring box - this allows you to create multiple Instances that are the same time but different dates. For Instances at different times you’ll need to set these up separately.

      4. Price List: Select an appropriate Price List, this will determine the price of tickets.
      5. Tax Code: Select the correct Tax Code for accounting purposes.
      6. Ticket Commission: The Ticket Commission added to tickets purchased for this Instance.

        REMINDER: Before saving, double check you have selected the correct Price List, Ticket Commission and Seating Plan. You will not be able to make changes to these elements after you have created your Instance.

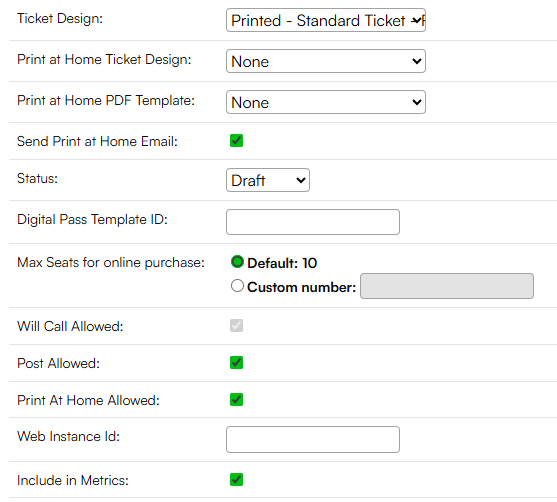

      7. Ticket Design: Select the Ticket Design template that will define how the physical tickets will look when printed.
      8. Print at Home Ticket Design: Select the Print at Home template that will determine how the ticket appears when generated within the PDF.
      9. Print at Home PDF Template: Select the A4 PDF Template that will contain your Ticket Design and any other information you want to add.
      10.  Status: Select the status of your Instance, this can be Live, Draft or Archived.
        Live: The event instance is ready to use. Just because an Event Instance is live does not mean it is on sale.
        Draft: The Event Instance is still in development.
        Archived: No longer in use but retained for reporting purposes.  In this mode the Instance will ignore any visibility and on sale settings, and will only ever appear in Marketing and Admin interfaces when you specifically search for archived Instances. These instances are visible on the API, but not on sale. This may impact your web integrations or any integrations with Agents. Mark as not visible on web to ensure Archived instances do not appear in the API.
      11.  Max Seats for online purchase: The default will be 10 but you can choose to enter any custom number. This will limit the maximum number of seats a customer can purchase online in a single transaction.
      12.  COBO / Will Call Allowed: This box will be checked by default and allows COBO/Will Call to be chosen as a delivery method for this Instance. This can be overridden by suppressing COBO / Will Call as a Delivery Method.
      13.  Post Allowed: Checking this box will allow postal delivery for tickets bought for this Instance.
      14.  Print at Home Allowed: checking this box will allow Print at Home to be chosen as the delivery method for tickets bought for this Instance.

        REMINDER: Delivery methods are also set for each of your Ticket Types - check out the article Creating and Editing Ticket Types for more information.

      15.  Web Instance Id: Depending on your integration, this is where you can enter a unique identifier for the Instance to be displayed on your website.
      16.  Include in Metrics: Leave this box checked to have this Instance automatically included in Metrics. Read the article Excluding an Event from Metrics for more information.
      17.  Start Selling time: Allows you to select when the Instance will go on sale for different sales channels. Jump to the next section for a more detailed explanation of on sale times.

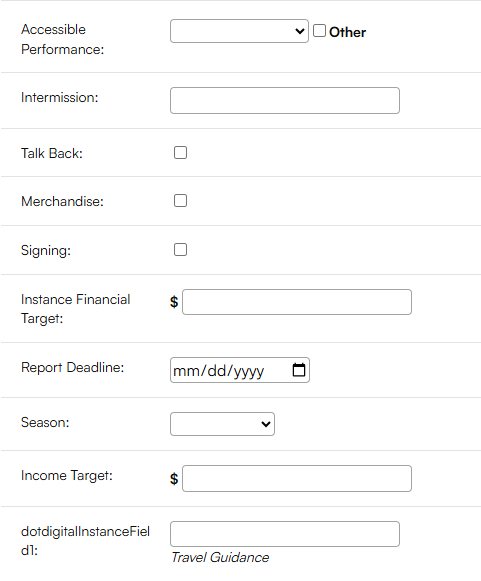

Any custom Instance Attributes you have will display at the bottom of this list.

TIP: You have the option to add as many Instance Attributes as you’d like to your Instances. Instance Attributes are additional information you want to include. For example, Instance Attributes that you might create could be for Access Performances, confirmation text or to add the original date and time if you are Rescheduling Instances. You can set up any Instance Attributes you wish to use and add them after you have set up your Instances.

While all this information is included in the Event Basic Details tab, only the Name of the Event is required to build one.

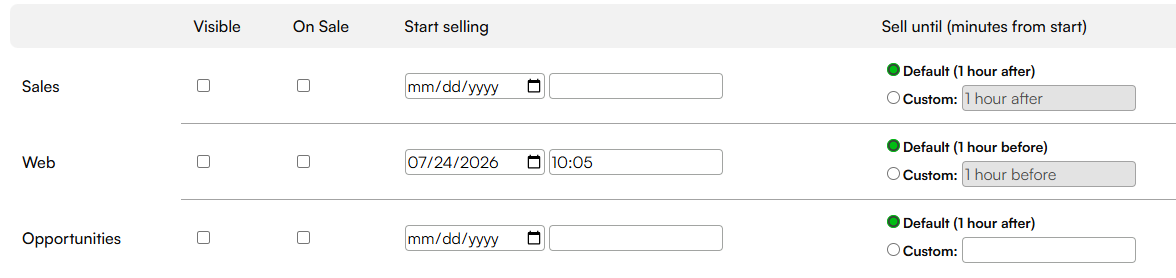

Start Selling Time

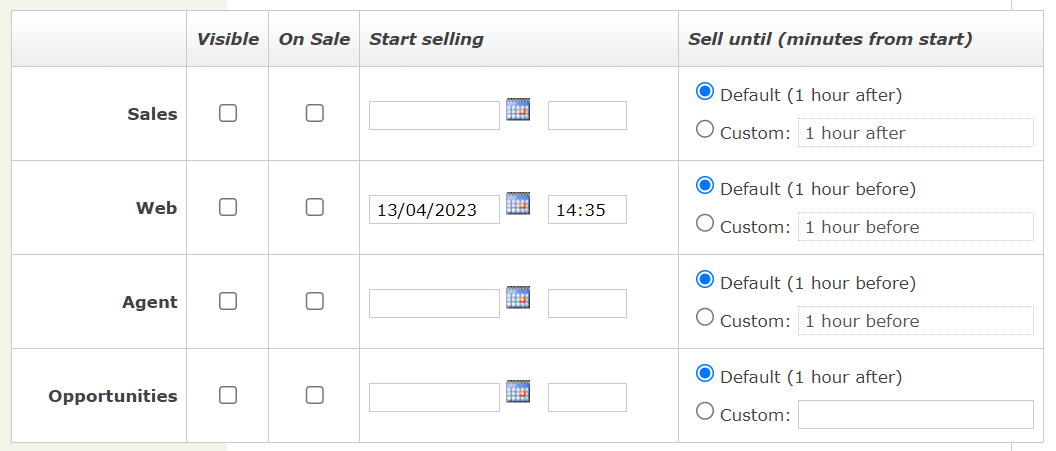

The Start selling time is where you select the specific date and time when the Instance goes on and off sale.

You can apply different times and dates based on User Role (Sales, Web, Agents, Opportunities).

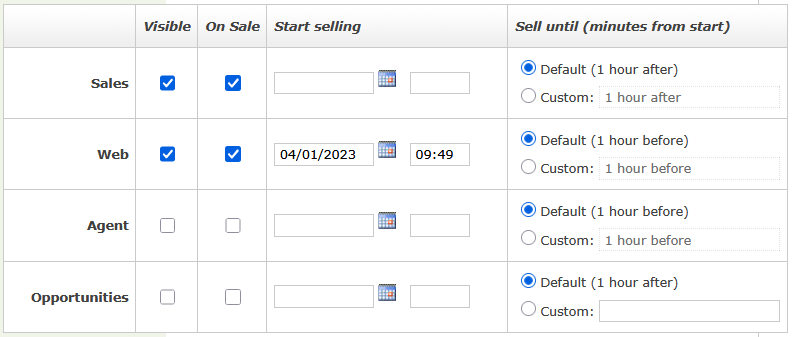

      • Checking the Visible box next to each Interface means the Event can be viewed but tickets cannot be bought
      • Checking the On sale box next to each Interface means that tickets to the Instance can be purchased. This can be overridden in the Sales Interface if Instances are both Live and Visible.

Next set the dates and times for when the Instance goes on and off sale for each Interface.

      • Start Selling: This is the date and time that tickets will go on sale. If you leave this blank, tickets will be on sale immediately.
      • Sell until (minutes from start): This is the time that the Instance will go off sale relative to the Instance start time. This will default to the default stop selling time set in your System Configuration.



TIP:  Use the Start Selling date and time to set your general sale. This will calculate the Priority Booking period as a number of days before the Start Selling time and date set here.

Once you are happy with the information you have entered, click Next.

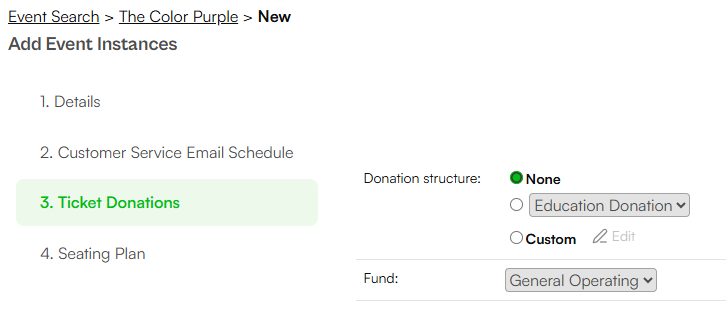

Ticket Donations

On the next screen you’ll be prompted to choose a Donation Structure and a Fund.

This defaults to no donation, but if you would like to add one, select the Donation Structure option and choose from the drop down menu or follow the steps in the Ticket Donation Structures article to create a new one.

Select the Fund that your Ticket Donation will contribute to. Read the article about Donations and Funds if you would like to set up a new one.

If you’re not ready to add your Donation Structure or Fund right now, you can come back to your Instances and update this later.

Click Next to move on to the next page.


Seating Plan

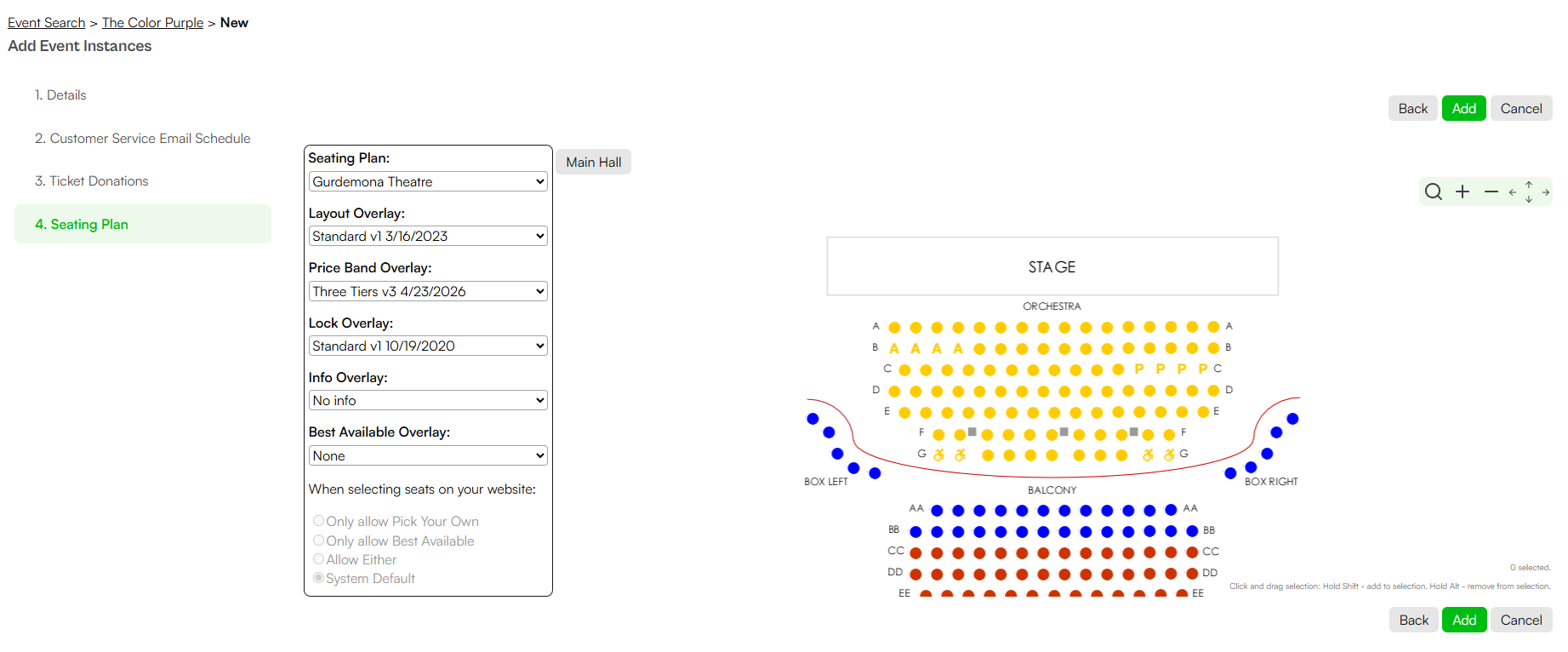

On the next page you’ll need to select your Seating Plan and corresponding Seating Plan Overlays.

From the drop down, select your Seating Plan.

WARNING: Once you've created an Instance, you cannot change its Seating Plan but you can change any Overlay on a Seating Plan at any time.

Next, select your Layout Overlay, Price Band Overlay and Lock Overlay. You won’t be able to continue without applying compatible Overlays to your Seating Plan.

Optionally, at this stage you may also choose to add an Info Overlay and a Best Available Overlay. You can also come back to your Instances and add an Info and a Best Available Overlay later.



Once you have applied your Seating Plan Overlays, click Add to create your Instance.

You can also click Back to return to the previous tabs. Although some changes can be made afterwards, we recommend that you review all the information inputted before creating your Instance.

REMINDER: Always test your Events and Instances to make sure they behave and display as you expect.


Editing Instances

Follow the steps below to make changes to your Instance after you have created it.

You can also update the following to make changes to your Instances:

REMINDER: If you need to remove or add a Price Band from an Instance, or multiple Instances, you must update both the Price List and Price Band Overlay simultaneously using the Bulk Instance Updater Tool.

You can update all of the information related to your Instance apart from the Seating Plan.

To edit an Instance:

      • In the Admin Interface, go to Events and choose the Event you want to make changes to.
      • On the Instances tab, select the Instance you would like to edit.
      • Select the tab where you would like to make changes and click Edit.
      • Make any required changes and click Save.

If you need to cancel or reschedule an Instance, you can find step-by-step instructions in the following articles:

TIP: On the Instances tab, you also have the option of updating the status of multiple Instances at the same time by clicking the Change the status of all Instances button. Another way of updating multiple Instances is by using the Bulk Instance Updater Tool.


Further Reading

You can find more articles on Setting Up and Editing Events in the Set up Events, Offers, Subscriptions and Merchandise section of the Support Centre.
